Spectroradiometer JETI spectraval 1501-HiRes

spectraval 1501-HiRes

High resolution spectroradiometer

The high-resolution spectroradiometer JETI spectraval 1501-HiRes was especially developed for the measurement of RGB laser projectors and displays. It has an optical resolution of more than 2 nm, so it allows a precise measurement of narrow bandwidth spectra. Its sensitivity is lower as of the standard version, but this is not significant in case of such light sources.

Spectroradiometer JETI spectraval 1501-HiRes

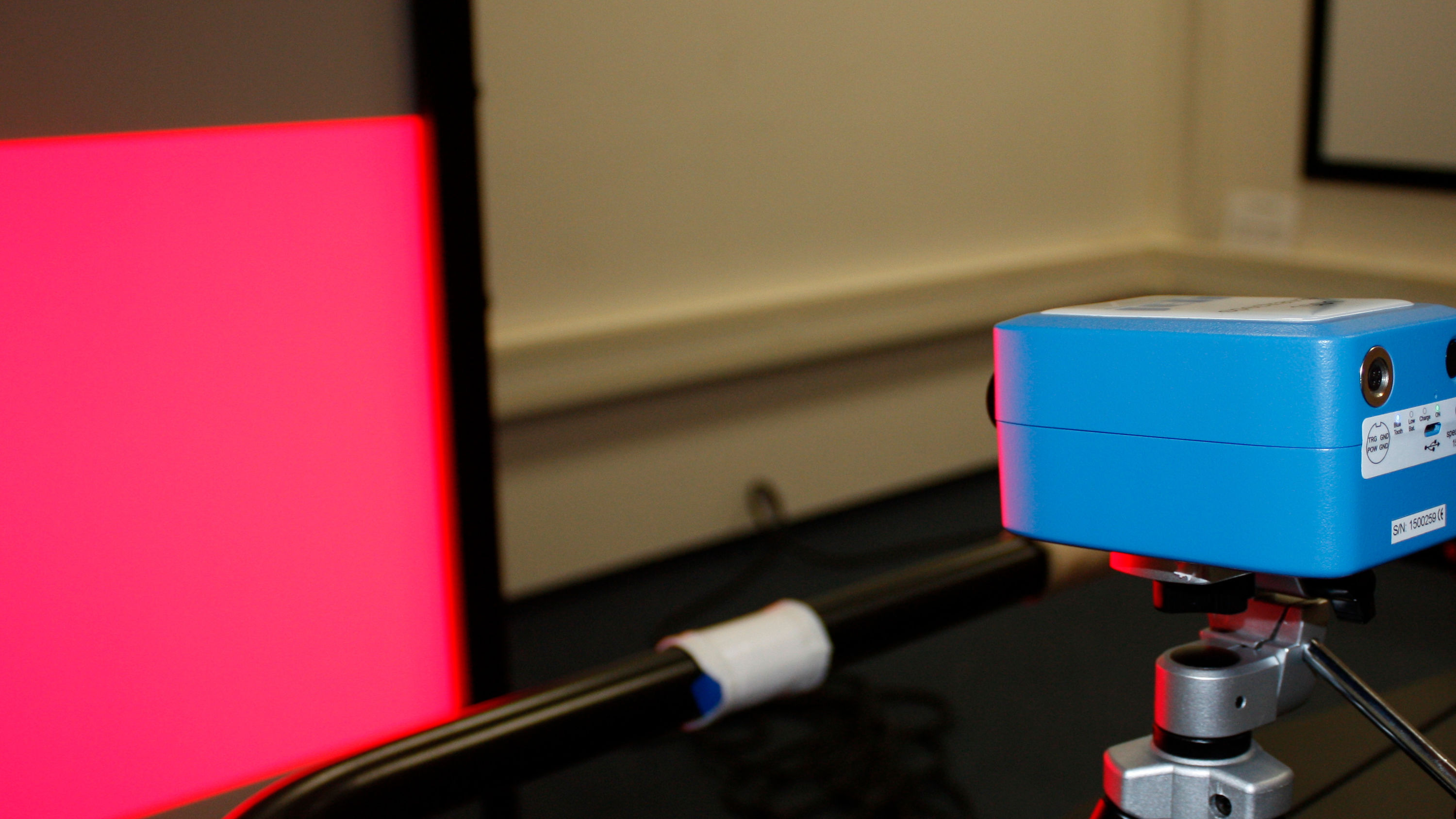

Calibration of a monitor with JETI spectraval 1501-HiRes

Highlights

Compact solution
Fast measurement
Measurement in Radiance (basic configuration) and Irradiance mode (diffusor required)
Precise results due to high quality spectrograph and NIST traceable calibration
Comfortable handling due to Bluetooth interface
Measurement of source repetition rate
Radiometric software JETI LiVal is included in the standard scope of delivery

Optical parameters

Spectral range: 380 … 780 nm
Optical bandwidth: 2 nm
Measuring range:
- Luminance 0.2 … 180 000 cd/m² (Illuminant A)
- Luminance 0.2 … 140 000 cd/m² (typical warm white LED)
  (higher values with optional filter)

Measuring quantities

spectral Radiance
xy and u' v' coordinates
Dominant wavelength, Color purity
Correlated Color Temperature (CCT)
CRI, CQS, TM-30
Circadian metrics, PAR

All accessories of spectraval 1501-HiRes are coded. The software switches to the related measuring mode and the appropriate calibration data will be used when an accessory was attached to the device.

Standard diffusor
spectraval 1501-HiRes measures in spectral Radiance mode. It is possible to convert it into a spectral Irradiance meter by attaching a diffusor.

Dolby/realD filter cap pairs
The calibration of 3D projectors needs to be done through the right and left eye glasses. spectraval 1501-HiRes can be equipped with caps containing the filters of Dolby and realD projection. The usage of these filter pairs allows a precise measurement of 3D projections.

On request.

Battery charger

Bluetooth USB adapter

Carrying case/ bag

Protective cap

Straylight protection tube
The straylight protection tube prevents the influence of surrounding light on Radiance measurements. It is mainly used for display measurements.

Tripod

Displays and projectors

Measurement of RGB laser projection

Documents

Datasheets

spectraval 1501.pdf (valid for all versions of the spectraval 1501 series)

Documentation

Operating Instructions JETI spectraval 15x1

Operating Instructions JETI LiVal 7.x

Operating Instructions Firmware SPECFIRM.pdf

Software, Drivers and Firmware

Software JETI LiVal

Demo version
- JETI offers you a demo version of JETI LiVal for testing. With the demo version you can get a first insight into the software.
  - JETI LiVal DEMO V7.4.1 (121.3 MiB)

Full version
- To download the full version of the software you have to be logged in (see in menu "Login").
- Actual software version: V7.4.1
- Download size: XX MiB

JETI LiVal Changelog

Software JETI SDK

JETI SDK V4.6.8 (4.9 MiB)
Actual software version: V4.6.8

JETI SDK Changelog

Firmware

To download the firmware you have to be logged in (see in menu "Login").
Actual Firmware version: V1.10.6

JETI spectraval Firmware Changelog

Drivers

Download the actual drivers from ftdichip.com
